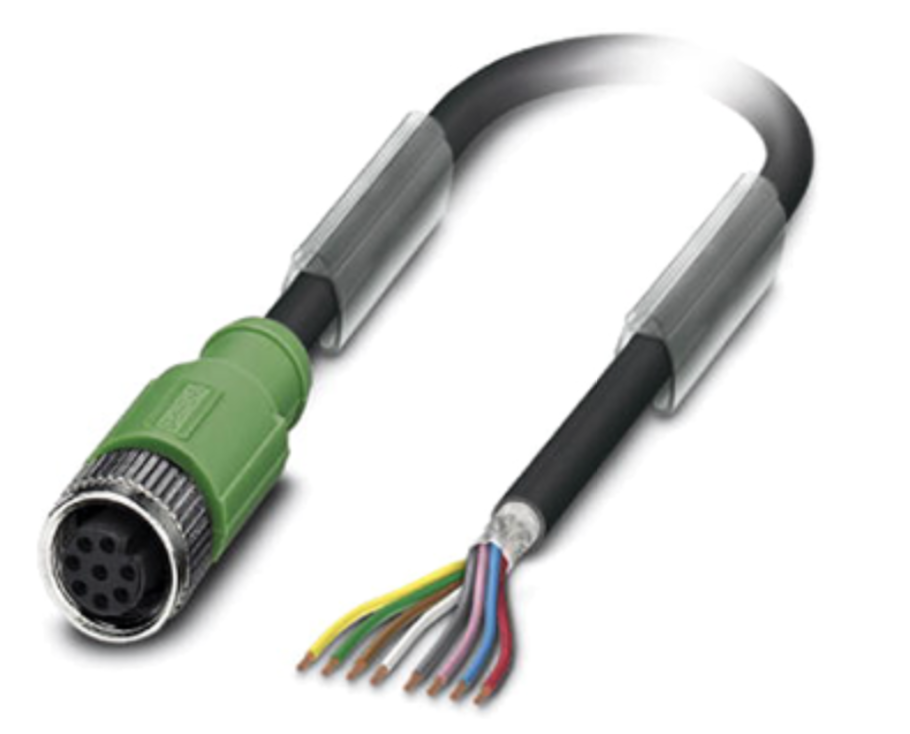

AP08-CS-MA-A-10M

M12 plug straight, 8pin, 'A' Coded Female Connector with 10M Cable
10m PUR Cable 8pin A-Coded f

M12 Connector with Coding A - Standard, Female; Number of Positions = 08 Contact Surface Material Ni/Au Housing Material TPU (Plastic) Knurls Material Zinc die-cast, nickel-plated Degree of Protection IP67 Fixing Torque 0.4 Nm (M12 Connector) Length of Cable 10.0 m Braided Shielding Material Conductor Insulation PP Conductor Cross Section (in sqmm) 8 x 0.25 AWG Signal Line AWG 24 External Cable Diameter 5.9 mm ± 0.2mm Open Wire End
