POSITAL UCD-IPH00-01024-Y06S-PAQ

Programmable Magnetic; Body: 58mm; Shaft: 6mm; Connector M12 plug rear

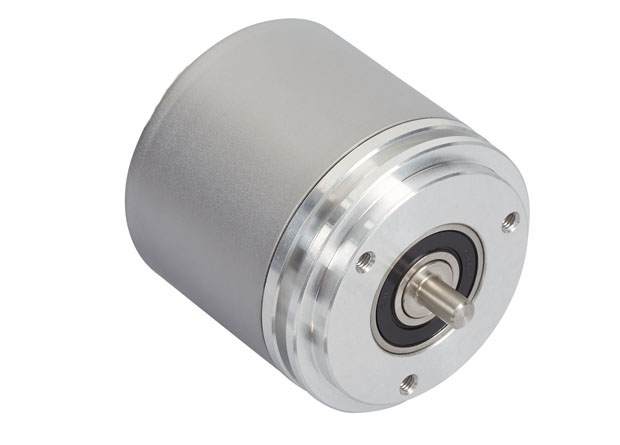

Posital UCD-IPH00-01024-Y06S-PAQ

POSITAL Incremental Encoder

Many applications require a simple, cost effective solution for accurate positioning. Incremental encoders generate an output signal each time the shaft rotates a certain amount. IXARC incremental encoders from POSITAL provide high resolution measurement using an incremental interface. Magnetic technology provides a compact, robust and cost-efficient angular sensing using an innovative multiturn technology and a Hall-sensor.

Optional stainless steel and heavy duty housings available.

  • Solid Shaft ø6 mm, ø58 mm Hub
  • Axial Plug M12 connection
  • IP64 / IP65
  • Material: Aluminium / Steel
  • Supply Voltage: 4.75 – 30 VDC
  • Programmable HTL/TTL but as a default Push-Pull (HTL), A, B, Z, /A, /B, /Z
  • Default PPR is 1024, PCA can supply configured as anything from 1 – 16384 ppr
