MOTRONA FU210

Frequency to Analog 4-20mA (plus Serial RS232); Replaces FU252

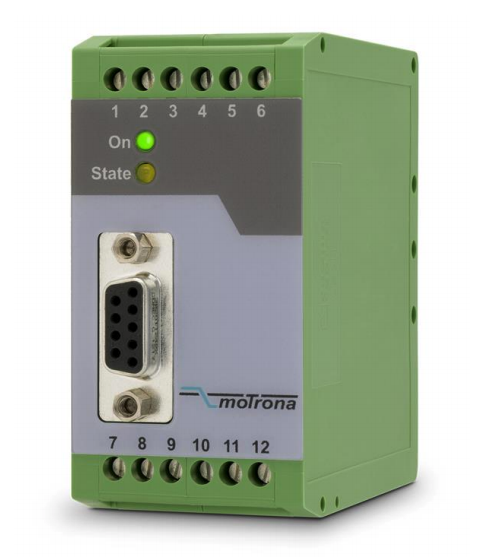

Motrona FU210

Motrona Signal Converter

Frequency >> Analog current/voltage

The FU210 is the functionally compatible and more powerful successor to our proven signal converters IV251/FU252/ZU252. (With a local firmware upgrade via the RS232/485 port and software OS6.0, this model can become either IV210 or ZU210).

The multifunction unit converts frequencies, counts or SSI signals into an analog, as well as serial format. Unsteady input frequencies can be smoothed by activating a selectable average filter. This signal converter is able to convert linked signals (A, B), such as sum, differences, product or ratio. It is suitable for connecting SSI absolute encoders 6 ... 32 bit, binary or gray format. Optional SSI master or SSI slave operation with various functions, such as concentricity or bit blanking.

- Input frequency up to 1 MHz [RS422], 200 kHz [HTL]
- Analog output ±10 V or 0/4 ... 20 mA, 16 Bit
- Power supply 18 ... 30 VDC
