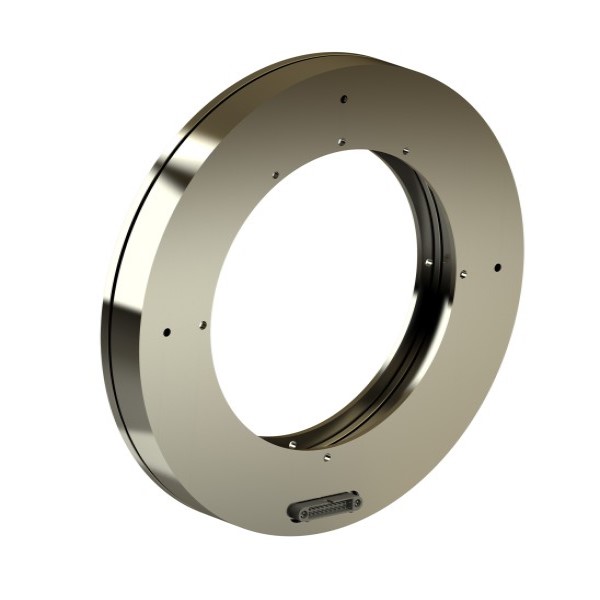

Safety Ring Encoder
Safety Ring Encoder
Images are for reference only, refer to product data sheet
Description
The LBET Ring Encoder is the ideal device for applications requiring saftey-critical and required the best precision and SIL2/PLd functional saftey. This has a robust, maintenance free design which is ideal for harsh industrial environments, and control system, and in application where space is at a premium. The encoder has a Profisafe via Profinet and SSI interface which ensures safe and fast transmission of postion and speed data.
- Housing Material: Aluminium 3.2315 (AlMgSi1) or Stainless steel 1.4305 (AISI 303)
- Mounting type stator: Clamping shaft or Screw connection
- Resolution: Up to 22 bits = 4.194.304 steps
- Interface: PROFIsafe over PROFINET or SSI
Contact ADM for more information on pricing and availbility
